Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Quyền lực chính: | 800kw | Thương hiệu động cơ: | Cummins |
|---|---|---|---|
| Xếp hạng hiện tại: | 1442A | Thương hiệu máy phát điện: | Stamford |
| Dung lượng pin: | 12V 100Ah | Cân nặng: | 7100kg |
| Dung tích bình xăng: | 1200L | Sự dịch chuyển: | 38 |
| Làm nổi bật: | marine diesel genset,power generating sets |
||

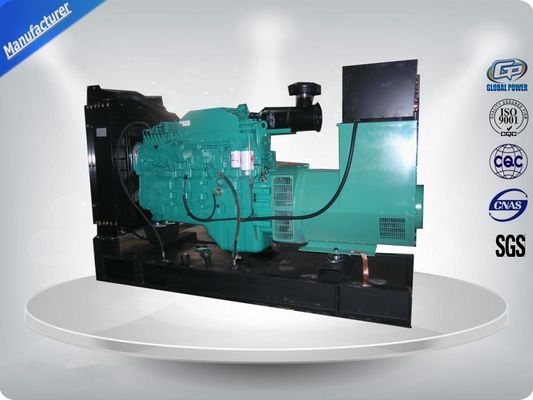

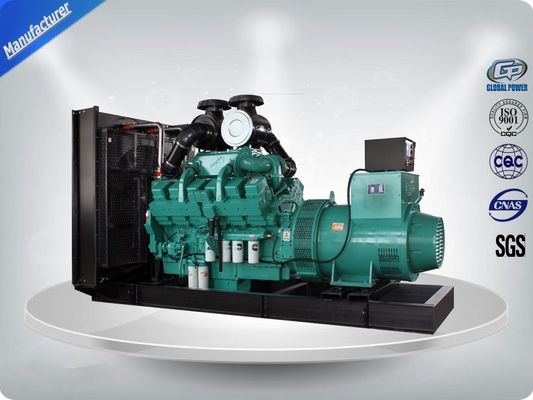

800Kw/1000Kva Open Type Diesel Generator With Cummins Engine KTA38-G5
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
Technical Specifications:
Genset:
| Prime Power (kw/kva) | 800/1000 |
| Standby Power (kw/kva) | 880/1100 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 1442 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 4450*1850*2400 |
| Open Type-Weight (kg) | 7100 |
| Soundproof Type- Dimension (L*W*H) (mm) | 6000*2400*2800 |
| Soundproof Type-Weight (kg) | 18000 |
| Fuel Tank Capacity(L) | 1200 |
| Continuous Running Time(hr.) | 6 |
Engine:
Main features:
Model 6BT5.9-G1
| Engine brand | Cummins |
| Output Power (kw) | 880 |
| Cylinder No. & Config. | 12, in-line |
| Combustion System | direct injection |
| Compression Ratio | 14.5:1 |
| Displacement (L) | 38 |
| Bore X Stroke (mm) | 159*159 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 199 |
| Fuel Consump. (g/kw·h) | 202 |
| Oil Capacity (L) | 135 |
Alternator:
Main features:
Model HCI634J
| Alternator brand | Stamford |
| Rated Power (kw) | 824 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Package:
Standard Supply Scope:
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
