Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

Hình ảnh lớn : Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Giang Tô, Trung Quốc
Hàng hiệu:	Global Power
Chứng nhận:	CE / ISO
Số mô hình:	GP P1368

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 bộ
Giá bán:	negotiable
chi tiết đóng gói:	bao bì bằng nhựa hoặc ván ép
Thời gian giao hàng:	25 ngày sau khi nhận được khoản thanh toán xuống
Khả năng cung cấp:	2000 bộ / năm

Tiếp xúc

Chi tiết sản phẩm

Công suất định mức:	1368kw 1710kva	Nguồn dự phòng:	1509kw 1886kva
Tính thường xuyên:	50/60hz	Cách phấn khích:	tự phấn khích
xi lanh động cơ:	12	Phương pháp làm mát:	Bởi bộ tản nhiệt
Quy định:	AVR	Sép:	1500/1800 vòng/phút
Làm nổi bật:	brushless alternator generator , engine generator set

Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

Test before shippment:

Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload
Noise level shall be tested.
All of the meters on the control panel shall be tested.
The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

Guarantee for Our Generators:

Guarantee Period: One year or 1000hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
24 hours service hot-line is available for customers.

Technical Specifications :
Genset:

Prime Power (kw/kva)	1368/1710
Standby Power (kw/kva)	1509/1886
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	2462
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	480017002550
Open Type-Weight (kg)	9500
Soundproof Type- Dimension (LWH) (mm)	/
Soundproof Type-Weight (kg)	/
Fuel Tank Capacity(L)	/
Continuous Running Time(hr.)	6

Engine:
Model 4012-46TAG3A

Engine brand	Perkins
Output Power (kw)	1500
Cylinder No. & Config.	12 in “V”
Combustion System	direct injection
Compression Ratio	13.6:1
Displacement (L)	45.842
Bore X Stroke (mm)	160*190
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	207(Temp.) / 210(Trop.)
Fuel Consump. (g/kw·h)	208
Oil Capacity (L)	177

Alternator:
Model PI734D

Alternator brand	Stamford
Rated Power (kw)	1320
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

Control System:

automatic cutter which is suitable for the generator power
urn on key
A device to measure the generators speed
Counter for measuring the Operating hours
Device to measure the current overload with a switched current
A device to measure the battery voltage
Voltmeter with a voltage exchanger
A device to measure the frequency
Thermostat to regulate the voltage
A device to measure the oil pressure
Alerting lamps indicating low and high temperature
Controller of the current increase and short circuit
Emergency stop button

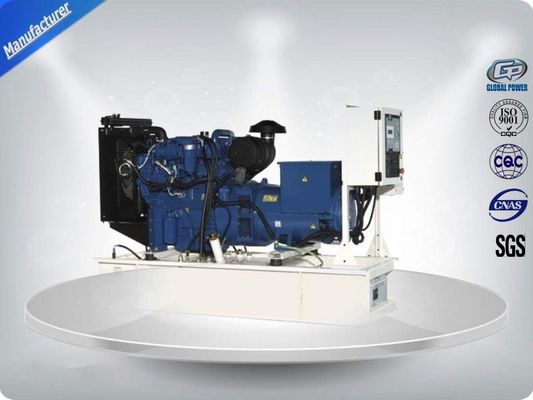

Our Picture :

Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

Standard Supply Scope:

Diesel engine with Alternator
Standard Accessory: Exhaust Silencer, Flexible pipe, Battery & Connenct wire, Operation Manual.
Control system will use Deep Sea DSE AMF module, LCD display all engine parameter, alternator parameter, and fully alarm & protection function.
Radiator is standard , Strat battery and charger

Select Supply Scope:

Silent ,Mobile,Container,weatherproof types canopy and trailer
Connect to main ,all panels:Circut Breaker,ATS,etc
Water & oil heater, oil-water separator, air breaker, base fuel tank.

Genset Construction :

All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings.
The fuel tank is fabricated of mild steel and is incorporated into the base frame.
The size of the tank is dependent on the size of the generator.
