Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Điện áp định mức: | 110V/120V/220V/230V/240V | Tính thường xuyên: | 50Hz/ 60Hz |
|---|---|---|---|
| Tốc độ quay: | 3600 vòng/phút có sẵn | Công suất đầu ra tối đa: | 3,5kVA |
| Chế độ khởi động: | Điện tử/Độ giật | Vật liệu cáp: | đồng nguyên chất |
| Kiểu: | Mở/Im Lặng | Hiện hành: | 12V/8.3A |
| Làm nổi bật: | single phase generator,single phase genset |
||

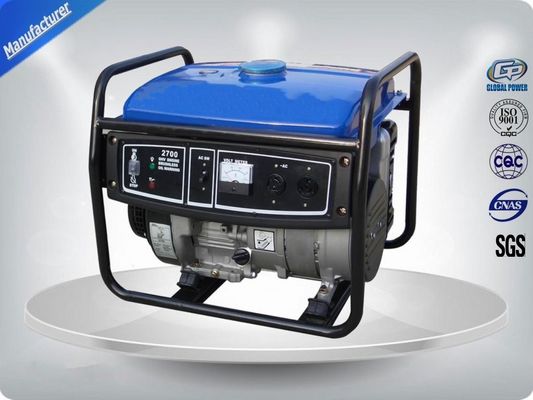

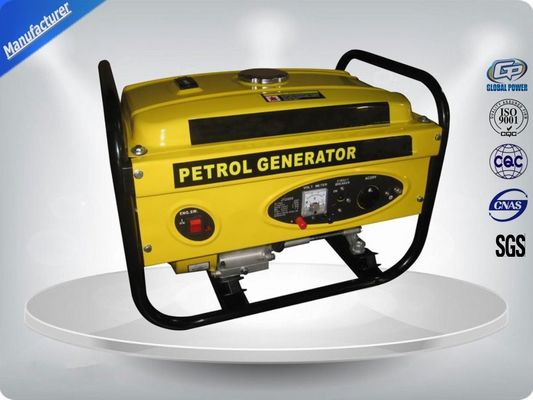

OEM Home Use Portable Gasoline Generator High Quality 950 /3500 Series Gasoline Generator
Control system includes:
1. automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button
Specification:
1. Portable gasoline generator
2. Economic, low fuel consumption.
3. Compact in structure, low in noise & pollution and high in efficiency.
4. Stable voltage and frequency.
5. Overload protection for safety operation.
6. Exceptional performance at reasonable price.
Suitable for the usage in office, shop, house, travelling, fan place
Engine Features
• Overhead valve (OHV) design, lower operation temperature, powerful drive and reliability and durability, and it save more oil.
• Cast iron casing does not only effectively improve lubrication, but also makes engine more wear-resistant and prolongs engine life.
• Automatic alarm and stop at low oil level, which prevents the engine to work at low oil level and gives more protection to engine.
• Metal cam and forged crankshaft makes engine more reliable and durable.
Alternator Features
• Alternator full power design
• Alternator brushless type design, free maintenance cost
• Alternator IP23 protect
• Alternator F class insulation
• Alternator single bearing design
• Alternator with aluminums cooled fan
• multiform voltage choose including, 110/150/120/220/230/240V
| Rated frequency (Hz): | 50 | 60 | |
| Rated voltage (V): | 220/230 | 110/120 | |
| Rated output power (kW): | 0.65 | 0.7 | |
| Max output power (kW): | 0.75 | 0.8 | |
| Rated rotation speed (rpm): | 3000 | 3600 | |
| DC output: | 12V 8A | ||
| Power factor cos: | 1 | ||
| Phase number: | Single phase | ||
| Noise level dB (A)/7m (zero load-full load): | 57 | ||
| Fule tank[L]: | 4 | ||
| Set | Overall dimensions [mm] ( L x W x H ): | 380x315x325 | |
| N. W/G. W[Kg]: | 16/17 | ||
| Engine | Engine model: | GP IE45 /160F/154F.... | |
| Engine type: | 2-stroke | ||
| Displacement [cc]: | 63 | ||
| Compression ratio: | 8.5: 1 | ||
| Rated power [(HP/rpm]: | 2.0/3600 | ||
| Rated rotation speed (rpm): | 3600 | ||
| T. C. I: | with | ||
| Spark plug: | F7TC | ||
| Starting system: | recoil starter | ||
| Rotation direction (view from flywheel): | clockwise | ||
| Fuel type: | automotive unleaded gasoline | ||
| Lube oil brand: | SAE10W30 (above CC grade) | ||
| Low oil alarm system: | No | ||
Warranty policy
JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator.
After sale service:
1) Quick response to customer's complains in half hour from get customers' emails or calls.
2) Giving correct solve solutions in 1 hour by our 20 years experience excellent service team.
3) Offering 24 hours hot line service and remote technical diagnosing and supporting.
4) Offering engineers to your local site to solve problems if urgent needed.
5) Branding generator set customers can enjoy our good service forever.
FAQ
1.Can you do the Customized brand for us?
Yes. We make the brand name with your logo and your product model on the generator set.
2.How long can I expect to get product?
According to your order quantity, generally, After we received your deposit, we will delivery in 25-30 days.
3.What is the payment method?
Our main payment method is by T/T, 30% deposit paid in advance, and 70% balance should be paid before goods delivery.
4. What are your payment terms?
T/T 30% in advance, balanced before shipment
Irrevocable L/C at sight
