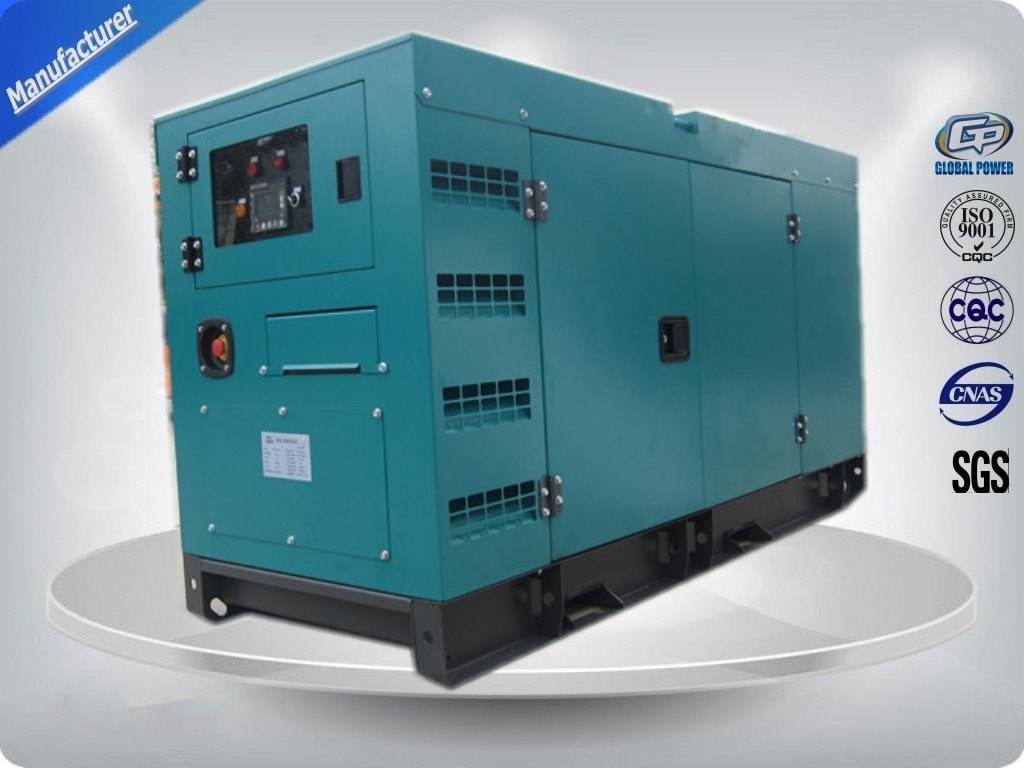

Weichai Motor Deutz Genset Silent Generator Set 350kw 437KVA Electrical

: Hình ảnh lớn : Weichai Motor Deutz Genset Silent Generator Set 350kw 437KVA Electrical

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Giang Tô, Trung Quốc
Hàng hiệu:	Global Power
Chứng nhận:	CCS / ISO
Số mô hình:	GP W350

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 bộ
Giá bán:	Negociable
chi tiết đóng gói:	Vỏ nhựa hoặc ván ép
Thời gian giao hàng:	30-35 ngày sau khi nhận được khoản thanh toán xuống

Tiếp xúc

Chi tiết sản phẩm

Đầu ra xếp hạng:	3500kw/437kva	Chế độ làm mát:	Chu kỳ va chạm nước tích cực
Loại đầu ra:	AC ba pha	Tốc độ & Tần suất:	1500 vòng/phút, 50Hz/ 18000 vòng/phút, 60HZ
Nhân tố:	KVA; hệ số công suất 0,8	Cách sử dụng:	Cung cấp điện dự phòng, sử dụng đất
Chế độ kích thích:	Máy kích thích quay AC	Loại động cơ:	Theo chiều dọc
Loại động cơ:	Theo chiều dọc
Làm nổi bật:	genset silent generator set , genset silent portable

350kw 437KVA Weichai motor deutz diesel generator set driven by WP13D385E200 powerd by Deutz

Product Details:

437kVA Diesel Fuel Three Phase Electric Generator
50hz 1500rpm,60hz 1800rpm optional
waterproof container canopy,ats

Specification of genset
Gensets model	GP W350
Standby power	350KW/437KVA
Rated Voltage(V)	400
Rated frequency(HZ)	50
Rated Speed(RPM)	1500
Power Factor	0.8(lagging)
Dimensions(mm) (L×W×H)	2850x875x1509
Genset Weight(kg)	1450
diesel engine
Engine model	Weichai
Standby power	385KW
Number of Cylinders	6
Cylinder arrangement	In line
Cycle	Four stroke
Aspiration	Direction injectioin
Bore×Stroke (mm×mm)	127x 165
Displacement (Liter)	12.45
Compression Ratio	17:1
Speed Governor	Electrical Governor
Starting Method	DC24V electrical starting
alternator
Alternator brand	Marathon
Alternator model	MX-350-4
Standby power	350kw/437kva
Number of Phase	3
Connecting Type	3 Phase and 4 Wires
Number of Bearing	Single
Protection Grade	IP21
Altitude	≤1000m
Exciter Type	Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class	H
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%

Control screen
Brand:Harsen/Smartgen/Deepsea	Features:English interface;LED screen;Touch buttons
Based Function:1.Display loading power,voltage,current,frequency,speed,temperature,oil pressure,running time,etc
2.Warning when low or high voltage,low or high frequency,over current,over or low speed,low or over battery voltage,etc
3.Over load protection,over/under frequency protection,over/under/imbalance voltage protection and low oil shutdown.
The component of genset
♦Direct injection diesel engine
♦Brushless,self-excited alternator
♦Water tank
♦Circuit breaker;Standard Controlling panel
♦Base frame,include damping pad
♦Air filter;fuel ilter;oil filter;24V DC start motor
♦Battery,battery charger,battery wires,internal cables
♦Mannual books of engine,alternator,genset,control panel ,wires diagram
Optional Accessories
♦Auto startup control panel
♦Automatic control panel(ATS)
♦Split type daily fuel tank;Integrated base fuel tank
♦Rainproof enclosure;Soundproof enclosure
♦Mobile power station
♦Mute power station
Warranty Time
12 months or 1000 hours of Warranty Time for all our products.We take the full responsibility only in the fault that created by the quality,the Wearing-parts,daily consumables and human error of operating&maintenance are not included in.
Payment terms/Delivery
♦T/T,30% deposit in advance,the balance before shippment
♦Within 15 days after receving deposit
The impletation of standards
International Standard:ISO9001:2008
Industry Standard:GB1105/GB2820
Free services
♦Loading capacity analysis ♦Technology consulations ♦Lay out of Installation
♦Testing and Debuging ♦Training of Operation ♦Low cost spare parts

Cummins Marine Diesel Generator Sets are hot cakes in the market and used in more than 150 countries all over the world.
Cummins Marine Diesel Generator Sets have feasures of compact structure, full power ranging, low fuel consumptions of marine engines, low noise, reliable marine generating set performing and long life span.
Cummins Marine Diesel Generator Sets are originally with Cummins global warranty net, namely you can get services and spare parts easily from Cummins sales agency or service centres all over the world.
Can provide certificates of Marine Products, conforming to IACS (International Association of Classification Societies)

CUMMINS Models

Weichai Motor Deutz Genset Silent Generator Set 350kw 437KVA Electrical
Supply Scope:
Complete Cummins Marine Diesel Generator Sets including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..

Global Power Service:

1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
    of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
    fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
    sets as per your specific requirements.
4. We provide professional & in time service after sale.

FAQ:

Q1: How is your Warranty?
Warranty: All FLYING DRAGON MERCHANDISEare warranted in accordance with our warranty terms

for a period of 12 months from date of dispatch or 1,000 running hours from date of commissioning whichever comes earlier.

Q2: Any advantages about your company?
-- Fast delivery time
-- Good design and high quality
-- Good service after sale
-- High quality with good price help you get more benefit and beat your competitors

Q3: Can you supply OEM service?
Yes, we can offer OEM service

Q4: How about the service after sale?
We have agents spread all over the world, our service network spanning more than 50 countries so we can ensure fast and good service for our clients. We are recruiting agents, welcome you to be our friend and get a win-win cooperation .
