Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Kiểu:: | Máy phát điện Diesel tự động điều khiển vi máy tính | Hệ thống làm mát: | Làm mát bằng nước biển, trao đổi nhiệt |
|---|---|---|---|
| Loại đầu ra: | AC ba pha | Tốc độ & Tần suất: | 1500 vòng/phút, 50Hz |
| Điều kiện sử dụng: | Sử dụng đất đai | Cách sử dụng: | Đơn vị chung |
| Chế độ kích thích: | Máy kích thích quay AC | Thị trường xuất khẩu: | Toàn cầu |
| Đột quỵ: | Bốn chu kỳ | Phương pháp cài đặt: | Đã sửa |
| Làm nổi bật: | Emergency Generator Set,power generating sets |
||
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
CUMMINS
Genset Model List :
Specification:
| 1. Specification of genset | ||||||||
| Rated current | 180A | |||||||
| Rated frequency(HZ) | 50 | |||||||
| Rated speed | 1500rpm | |||||||
| Power factor | 0.8(lagging) | |||||||
| Dimensions(mm) (L×W×H) | 2250*850*1400 | |||||||
| Genset weight(kg) | 1500 | |||||||
| 2. Specification of diesel engine | ||||||||
| Cylinder arrangement | Vertical in-line | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Turbocharged | |||||||
| Bore×Stroke (mm×mm) | 114 x 135 | |||||||
| Displacement (Liter) | 8.3 | |||||||
| Rated speed | 1500rpm | |||||||
| Starting Method | DC24V electrical starting | |||||||
| Speed Governor | Electronic | |||||||
| Cooling System | By sea water heat exchanger | |||||||
| Fuel Consumption | 212g/kw.h | |||||||
| 3. Specification of alternator | ||||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
![]()
Supply Scope:

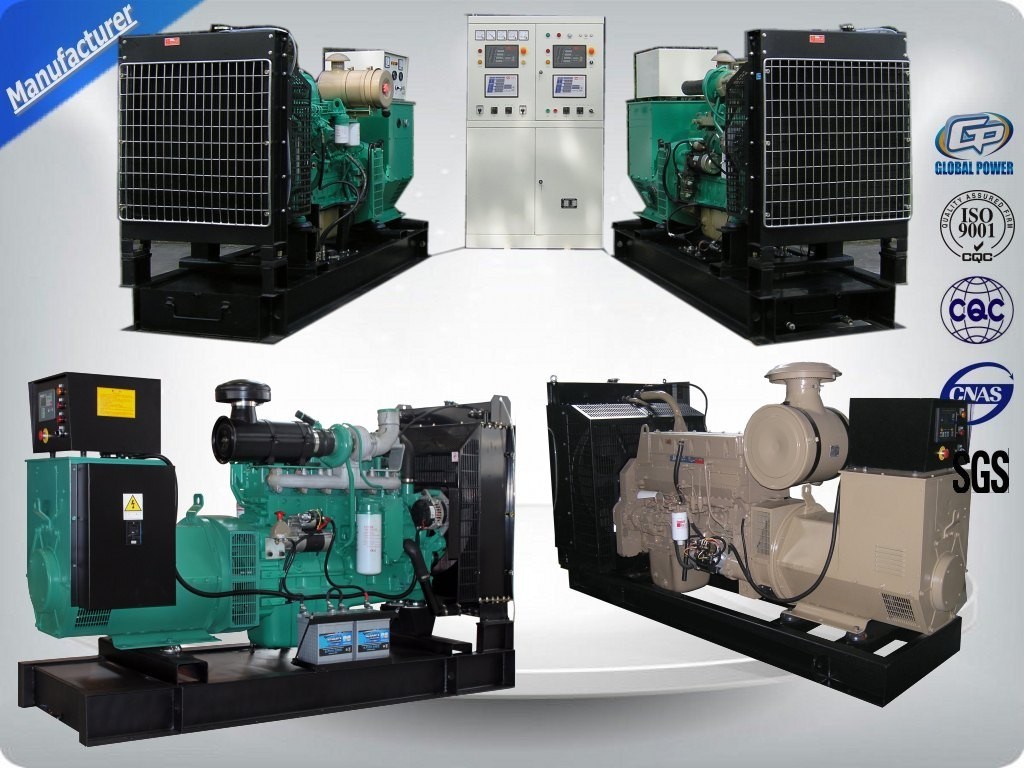

Complete Cummins Marine Diesel Generator Sets including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..
Global Power Service:
1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
sets as per your specific requirements.
4. We provide professional & in time service after sale.
