Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Điều kiện sử dụng: | Ánh sáng khẩn cấp | Tính thường xuyên: | 50Hz, 60Hz |
|---|---|---|---|
| Đột quỵ: | bốn thì | Nguồn đèn: | Có sẵn 4000W |
| Quyền lực: | 10kw/12kva | Hệ thống vận hành bằng cột buồm: | Thủ công |
| Điện áp định mức: | 110V, 120V, 220V, 230V, 240V | Nguồn điện: | Máy phát điện Diesel |
| Làm nổi bật: | portable light towers,trailer mounted light towers |
||

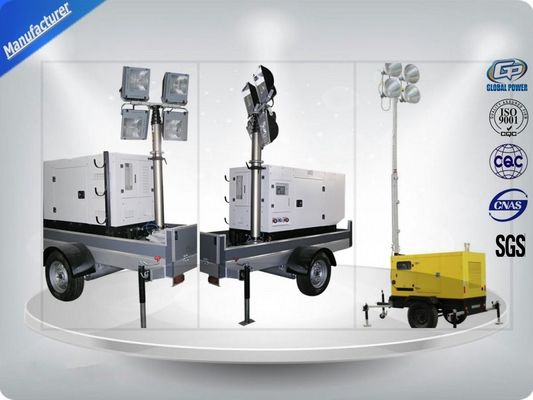

Low Noise Trailer Mounted Mobile Light Tower Generator 10Kw/12Kva F Insulation Class
1-PH, 50Hz@3000RPM, 220 (Also Can Be Made According To Customers’ Special Requirements)
1. Composed of 186FA diesel engine and China
Alternator
2. 12V DC start motor and storage battery
3. Brush, Self-excited, IP20, insulation class F alternator
4. Key start panel control system as standard, digital auto-start panel is optional
5. 8-hour operationTOP tank
6. Optional open type or silent type
7. All generator sets are gone through rigorous testing before being released to the market place, including
50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
|
Prime Power |
10KW/12.5KVA |
Standby Power |
11KW/13.7KVA |
|
Rated Speed |
3000RPM |
Output Frequency |
50HZ |
|
Phase |
3 |
Rated Voltage |
400V |
|
Engine Model |
EV80 |
Alternator Model |
XNF-10 |
|
Fuel Consumption of 100% load |
2.7L/H |
Fuel tank capacity(L) |
16 |
|
Voltage Regulation Rate |
≤±1% |
Random Voltage Rate |
≤±1% |
|
Frequency Regulation Rate |
≤±5% |
Random Frequency Variation |
≤±0.5% |
|
Dimension (silent type) |
1150X650X730(mm) |
Weight (silent type) |
260kg |
|
20' container qty(normal loading) |
54 |
40' HQ container qty(normal) |
108 |
GLOBAL POWER mobile lighting tower testing items
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Lamps testing
8) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
After-sales Service:
GLOBAL POWER grant our clients a twelve-month-period or 1000 running hours warranty for any machine exported from us.
During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge, at our discretion.
There are two ways we can ship the compensated spare parts:
(1) Upon the urgent request from our clients, we will ship the compensated spare parts by international courier, such as DHL, TNT, UPS or Fedex. The courier will arrive the designated destination within 5-7 days. The client will assume the courier expense.
(2) For the regular claim for the spare parts, we will ship the compensated spare parts together with next shipment of new machines. The shipment expense is free.
