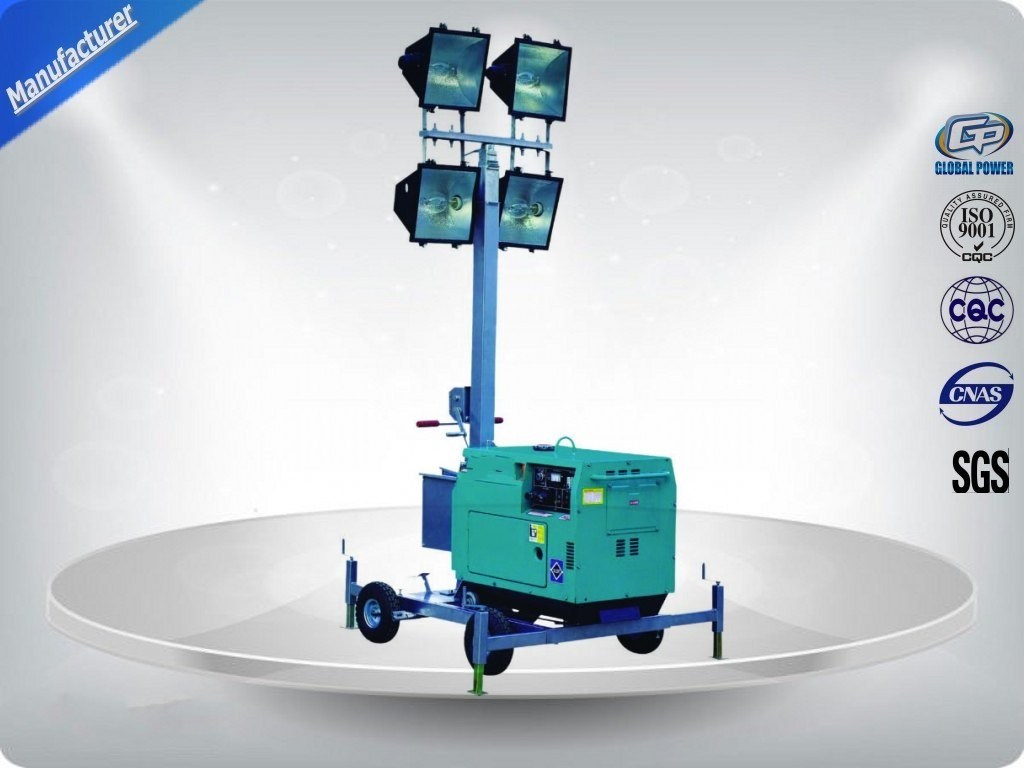

60Hz Single Phase Portable Mobile Light Tower Rental With Diesel Generator

60Hz  Single Phase Portable Mobile Light Tower Rental With Diesel Generator​

[GLOBAL POWER]  generator lighting tower
1) 30ft(9meters) manual operated mast
2) With Kubota, Parkins, Yanmar or Changchai diesel engine
3) Factory supply directly, cheaper price, faster delivery, better service
4) 4x1000W metal halide lights as standard, 4x1500W/4x2000W/6x1500W/4x400W LED as optional
5) Single-axle trailer mounted, 60km/h max. speed
6) Water-proof controller, inside-canopy controller board

 Standard configuration:
1) Genuine Brand diesel engine
2) Copy stamford alternator can be available
3) 4x1000W metal halide lamps (Spotlights)
4) 4 units manual stabilizer supporting feet
5) 9 meters manual operated mast
6) Water cooled controller board(Inside canopy)
7) Digital controller
8) Emergency stop
9) Output sockets * 2 units
10) 358° mast rotation angle
11) Mechanical drum brake
12) 175/70R13 wheels
13) 100L larger fuel tank
Standard Configuration of GLOBAL POWER mobile lighting tower design:
1. Japan Kubota engine, UK engine, Cummins engine, Yangdong engine
2. Original Stamford alternator, faraday, Meccalte alternator or Copy Stamford alternator
3. Weather proof and Soundproof canopy design
4. Control panel : Deepsea, Comap,Smartgen...
5. DELIXI or CHINT circuit breaker
6. 50hours Continuous Working Hours Base Fuel Tank7. Anti-Vibration Mounted System
8. Battery and battery charger
9. Industrial silencer and flexible exhaust hose
10. Big wheels for Road
11. Hydraulic operated mast and Manual operated mast
12. 8M/9M/11M high mast
13. Muilt-options of lamps: 4x1000W, 4x1500W, 4x2000W, 6x1000W, 6x1500W, 6x2000W

Benefits of GLOBAL POWER mobile lighting towers:
1. Stable function, convenient service;
2. Low operating cost results in optional economy;
3. Gets the job done wherever you are;
4. Ease of installation, operation and maintenance.


GLOBAL POWER mobile lighting tower testing items
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Lamps testing
8) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection



Specification:

ength(mm)	2280(1050,Retracted the tow bar & reversed the rear legs)
Width(mm)	1050
Height(mm)	2760(2270,Deteached a pair of the top lights)
Height (Mast be extended fully,mm)	7060
Weight (Dry,kg)	460(Without fuel)
Engine model	186FB
Frequency (Hz)	50/60
Speed (rpm)	3000/3600
Continued Power (kVA)	2.1/2.3
Number of Cylinders	1
Diesel Engine Characters	4 -cycles, air-cooled diesel
Combustion Type	Direct injection
Engine Aspiration	Naturally aspirated
Alternator	Single phase
Rating Voltage (V)	230(AC)
Alternator Insulation	Class H
Fuel Tank Capacity	35 liters (10 US Gallons)
Operating hours with full fuel	80 hours
Type of lights	LED
Number & Power of Lights	4*300W
Number of Mast Sections	5
Mast Extension	Manually
Light Tilt	Manually
Stabilizing Legs	Manually
Trailer Suspension System	Single torsion axle without brake
Hitch & tow bar	The ball or O ring hitch in stable height & "A" tow bar
Tire & rim size	13"
Wires & electic components	IP44
Acoustic Pressure	75dB(A) at 7 meters
Max.load quantity in a 20' container(sets)	10

Options:
1) Genuine Perkins 403D-11 diesel engine
2) Genuine Yanmar diesel engine
3) Changchai CZ385Q diesel engine
4) Genuine Stamford PI044F alternator
5) 60Hz America standard lights
6) Smartgen ALC700 tower lights digital controller
7) Beacon lights
8) Extend water proof sockets
9) Flood lights (4x1000W)
