Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Cách sử dụng: | Thiết bị chung / Nguồn điện khẩn cấp | Tính thường xuyên: | 50Hz |
|---|---|---|---|
| Đột quỵ: | bốn thì | Nguồn đèn: | Không bắt buộc |
| Tốc độ (Động cơ Diesel): | Có sẵn 1500/1800 vòng/phút | Hệ thống vận hành bằng cột buồm: | Thủ công |
| Điện áp: | 110V, 120V, 220V, 230V, 240V | Nguồn điện: | Máy phát điện Diesel / Xăng có sẵn |
| Làm nổi bật: | portable light towers,trailer mounted light towers |
||

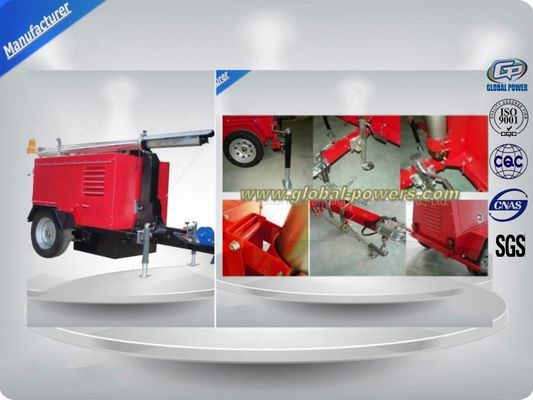

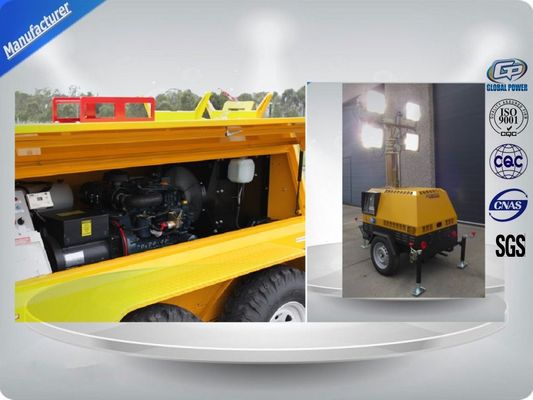

Towable Portable Light Towers
Features:
Mobile Light Tower Application:
For municipal, highway bridge, port, mine, construction sector construction and other field work at night lighting. And also can be used for night repair, disaster scene lighting.
1. Manual / Hydraulic heavy-duty winch;
2. Telescopic, mechanical, 3 stages mast up to 9 metres;
3. 360 degree of mast rotation and 180 degree of light bar waving;
4. New unique high pressure aluminum lamps;
5. Separate lockable, weather protected, powder-coated steel doors.
Specification
| Length(mm) | 2280(1050,Retracted the tow bar & reversed the rear legs) |
| Width(mm) | 1050 |
| Height(mm) | 2760(2270,Deteached a pair of the top lights) |
| Height (Mast be extended fully,mm) | 7060 |
| Weight (Dry,kg) | 460(Without fuel) |
| Engine model | 186FB |
| Frequency (Hz) | 50/60 |
| Speed (rpm) | 3000/3600 |
| Continued Power (kVA) | 2.1/2.3 |
| Number of Cylinders | 1 |
| Diesel Engine Characters | 4 -cycles, air-cooled diesel |
| Combustion Type | Direct injection |
| Engine Aspiration | Naturally aspirated |
| Alternator | Single phase |
| Rating Voltage (V) | 230(AC) |
| Alternator Insulation | Class H |
| Fuel Tank Capacity | 35 liters (10 US Gallons) |
| Operating hours with full fuel | 80 hours |
| Type of lights | LED |
| Number & Power of Lights | 4*300W |
| Number of Mast Sections | 5 |
| Mast Extension | Manually |
| Light Tilt | Manually |
| Stabilizing Legs | Manually |
| Trailer Suspension System | Single torsion axle without brake |
| Hitch & tow bar | The ball or O ring hitch in stable height & "A" tow bar |
| Tire & rim size | 13" |
| Wires & electic components | IP44 |
| Acoustic Pressure | 75dB(A) at 7 meters |
| Max.load quantity in a 20' container(sets) | 10 |
| Optianal equipment & upgrades | |
| Engine | 186FB(Local Brand) |
GLOBAL POWER mobile lighting tower testing items
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Lamps testing
8) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
After-sales Service:
GLOBAL POWER grant our clients a twelve-month-period or 1000 running hours warranty for any machine exported from us.
During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge, at our discretion.
There are two ways we can ship the compensated spare parts:
(1) Upon the urgent request from our clients, we will ship the compensated spare parts by international courier, such as DHL, TNT, UPS or Fedex. The courier will arrive the designated destination within 5-7 days. The client will assume the courier expense.
(2) For the regular claim for the spare parts, we will ship the compensated spare parts together with next shipment of new machines. The shipment expense is free.
